口罩機
本機主要用于平面式口罩自動成型：整卷布料放卷后經過滾輪驅動，布料通 過自動折邊、包邊；鼻梁條整卷牽引開卷，定長裁切后導入至包邊布料中，雙邊 通過超聲焊接至封口，再經過超聲側向封口，通過切刀裁切成型；通過流水線將 口罩輸送至兩個口罩耳帶熔接工位，通過超聲焊接最終口罩成型；當口罩制成后， 通過流水線輸送至平帶線收集。
[上一個：暫無]
[下一個：PET瓶片熱洗]
- 詳情介紹
口罩機產品視頻
口罩機概述
本機主要用于平面式口罩自動成型：整卷布料放卷后經過滾輪驅動，布料通 過自動折邊、包邊；鼻梁條整卷牽引開卷，定長裁切后導入至包邊布料中，雙邊 通過超聲焊接至封口，再經過超聲側向封口，通過切刀裁切成型；通過流水線將 口罩輸送至兩個口罩耳帶熔接工位，通過超聲焊接最終口罩成型；當口罩制成后， 通過流水線輸送至平帶線收集。
This machine is mainly used for automatic forming of flat face mask: the whole roll of cloth is driven by roller after unwinding, and the cloth is folded and wrapped automatically; the nose beam is pulled and uncoiled by the whole roll, cut to a fixed length and then imported into the wrapped cloth, and the two sides are welded to the seal by ultrasonic welding, and then sealed laterally by ultrasonic, and then cut and formed by cutter; the cloth is wrapped by assembly line The mask is delivered to two mask ear belt welding stations, and finally formed by ultrasonic welding; when the mask is made, it is delivered to the flat belt line through the assembly line for collection.
This machine is mainly used for automatic forming of flat face mask: the whole roll of cloth is driven by roller after unwinding, and the cloth is folded and wrapped automatically; the nose beam is pulled and uncoiled by the whole roll, cut to a fixed length and then imported into the wrapped cloth, and the two sides are welded to the seal by ultrasonic welding, and then sealed laterally by ultrasonic, and then cut and formed by cutter; the cloth is wrapped by assembly line The mask is delivered to two mask ear belt welding stations, and finally formed by ultrasonic welding; when the mask is made, it is delivered to the flat belt line through the assembly line for collection.

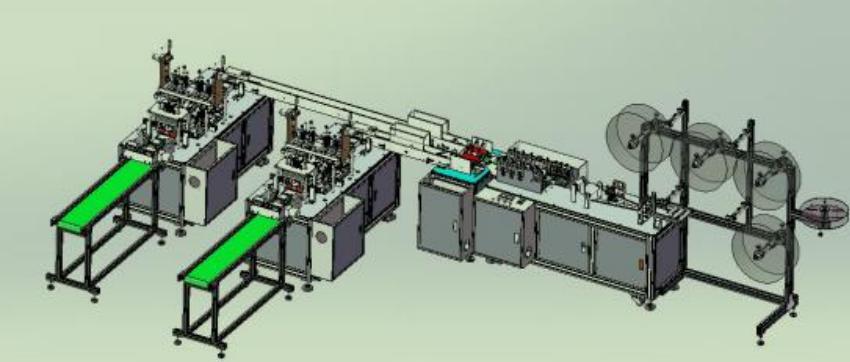

設備簡圖
（此圖僅供參考，設備以實物為準）
equipment diagram (this drawing is for reference only, and the equipment shall be subject to the real object)
equipment diagram (this drawing is for reference only, and the equipment shall be subject to the real object)
設備安裝與配置需求
(1)設備尺寸：6800mm(L)×3800mm(W)×2000mm(H)；
equipment size: 6800mm (L) × 3800mm (W) × 2000mm (H);
(2)外觀顏色：無特殊說明時按照工廠標準；
appearance color: according to the factory standard if there is no special instructions;
(3)設備重量：≤4500kg，地面承重≤500KG/m2；
equipment weight: ≤ 4500kg, ground bearing capacity ≤ 500kg / m2;
(4)工作電源：220V，50HZ，額定功率約10KW；
working power supply: 220V, 50Hz, rated power: 10kW;
(5)壓縮空氣：0.5～0.7MPa，使用流量約300L/min；
compressed air: 0.5-0.7mpa, flow rate: 300L / min;
(6)使用環境：溫度10～35℃、濕度5-35%HR，無可燃性、腐蝕性氣體，無粉塵（潔凈度不低于10萬級）
operating environment: temperature 10-35 ℃, humidity 5-35% HR, no combustible, corrosive gas, no dust (cleanliness no less than 100000).
(7)操作人員：1人
Operator: 1
equipment size: 6800mm (L) × 3800mm (W) × 2000mm (H);
(2)外觀顏色：無特殊說明時按照工廠標準；
appearance color: according to the factory standard if there is no special instructions;
(3)設備重量：≤4500kg，地面承重≤500KG/m2；
equipment weight: ≤ 4500kg, ground bearing capacity ≤ 500kg / m2;
(4)工作電源：220V，50HZ，額定功率約10KW；
working power supply: 220V, 50Hz, rated power: 10kW;
(5)壓縮空氣：0.5～0.7MPa，使用流量約300L/min；
compressed air: 0.5-0.7mpa, flow rate: 300L / min;
(6)使用環境：溫度10～35℃、濕度5-35%HR，無可燃性、腐蝕性氣體，無粉塵（潔凈度不低于10萬級）
operating environment: temperature 10-35 ℃, humidity 5-35% HR, no combustible, corrosive gas, no dust (cleanliness no less than 100000).
(7)操作人員：1人
Operator: 1
設備主要組成結構
|
序號 Serial number |
部件名稱 Part name |
數量 Quantity |
備注 remarks |
| 1 |
濾水布/過濾棉/吸水層放卷機構 Filter cloth / filter cotton / water absorption layer unwinding mechanism |
3套 3sets |
|
| 2 |
鼻梁條放卷機構 Nose strip unwinding mechanism |
1套 1sets |
|
| 3 |
鼻梁條校直機構 Bridge straightening mechanism |
1套 1 sets |
寬度 3-7mm Width 3-7mm |
| 4 |
鼻梁條驅動、裁切機構 Driving and cutting mechanism of nose beam |
1套 1 sets |
寬度 3-7mm Width 3-7mm |
| 5 |
布料折邊機構 Fabric folding mechanism |
1套 1 sets |
|
| 6 |
滾焊封邊機構 Rolling welding edge sealing mechanism |
2套 2 sets |
雙邊 bilateral |
| 7 |
布料驅動機構 Cloth driving mechanism |
1套 1 sets |
|
| 8 |
布料扇折機構 Fabric folding mechanism |
1套 1 sets |
|
| 9 |
滾焊側縫機構 Roll welding side seam mechanism |
2套 2 sets |
|
| 10 |
滾封機構 Rolling mechanism |
1套 1 sets |
|
| 11 |
轉運流水線 Transfer line |
2條 2article |
|
| 12 |
分流機構 Shunt mechanism |
2套 2 sets |
|
| 13 |
耳帶焊機機構 Ear band welding machine mechanism |
2套 2 sets |
|
| 14 |
下料流水線 Blanking line |
2條 2article |
|
| 15 |
操作系統 operating system |
1套 1 sets |
|
| 16 |
操作面板 operation panel |
1套 1 sets |
適用來料規格
applicable incoming specifications
|
項目 project |
掛軸數量 Number of hanging axle |
寬度（mm） Width (mm) |
卷料外徑（mm） Outer diameter of coil (mm) |
料筒內徑 （mm） Inner diameter of barrel (mm) |
重量 weight |
|
布料 cloth |
3 | 170-200 | Φ600 | Φ76.2 | Max 15kg |
|
鼻梁條 Nose bar |
1 | 3-7 | Φ400 | Φ76.2 | Max 25kg |
|
耳帶 Auricular band |
袋 4 bags |
3 | -- | -- | -- |
生產產品規格
production product specification:
標準型：175*95mm
Standard Type: 175 * 95mm
標準型：175*95mm
Standard Type: 175 * 95mm
